Cladding Material Aviation Hangar Doors Corrugated Steel Plate Tent Sliding
| Place of Origin | Henan, China |
|---|---|
| Brand Name | YUOU |
| Certification | ISO9001 |
| Model Number | Yuou-Hangar door |
| Minimum Order Quantity | 1 piece |
| Price | $20000.00 - $80000.00/Piece |
| Packaging Details | Standard export wooden case |
| Delivery Time | 15 work days |
| Payment Terms | D/A, L/C, , T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Piece/Pieces per Month |
Product Details
| Product Name | Cladding Material Corrugated Steel Plate Hangar Tent Sliding Aircraft Hangar Door | After-sale Service | Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other |
|---|---|---|---|
| Materi0.5-0.8mmal | Steel + PU Foam | Door Size | Customized |
| Surface Treatment | Finished | Opening Speed | 6-18 M/min |
| Working Temperature | -40 To 50 Degrees | Power Supply | 3-Phase 380V/50HZ |
| Type | Steel Structure Hangar | Position | Exterior |
| Package | 40HQ Container | Application | Steel Workshop |
| High Light | cladding material aviation hangar doors,corrugated steel plate aviation hangar doors,380v airport hangar doors |
||
Product Description

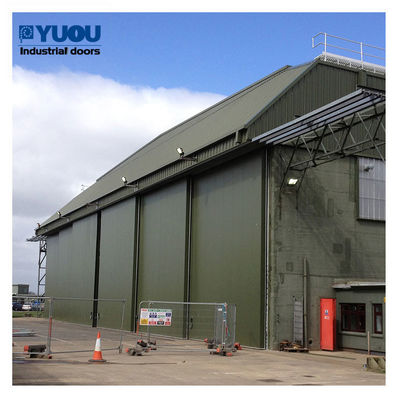

Cladding Material Corrugated Steel Plate Hangar Tent Sliding Aircraft Hangar Door
Product description:
Application:
Sliding hangar Doors are specially designed for hangars of civil or military airports and aircraft factories. It can horizontally move between the top and bottom tracks. There are single, double and multi panels, which can be installed indoor or outdoor according to the actual surroundings. Hangar Door has various forms, specifications and panels.
Detail technical description:
| Aircraft Sliding Hangar Door | |
| Door hole size | Customized |
| Motor power of each door leaf | 0.75-1.5KW, 380±10%V, 50HZ |
| Moving speed |
Highest speed: 20m/min Lowest speed: 6m/min Speed by manual: 3m/min |
| Control system | Master control + sub control (PLC program) |
| Sound insulation | 15-23DB |
| Heat transfer coefficient | 1.623W/ m2℃ |
| Work temperature | -40℃～50℃ |
| Basic wind pressure | 0.65kN/m2(wind speed 30m/S) |
| Deflection of extreme wind pressure | 1/365(<1/300) |
| Seismic intensity | Class 7 |
| Wind resist | 35m/s |
1. Door Panel
PC sunlight plate: with good daylighting and better thermal insulation performance
A. Corrugated steel plate: 0.5-0.8mm, powder coated galvanized steel, with good anti-corrosion performance and easy to install.
B. PU sandwich panel: 0.4mm double layer painted steel, filled with enviromental friendly PU foam, with good heat preservation and noise insulation.
C. PC sunlight plate: with good daylighting and better thermal insulation performance.
2. Steel Structure
A. Professional mechanical analysis of steel structure.
B. All material are hot galvanized, with excellent corossion resistance.
C. All jolts are fully welded or bolted with high strength.
Guide rail:
A. Ground rail: 18-24kg
B. Top guide rail: 150-250mm H-shaped steel
4. Wheels
A. Bottom bearing rail: conical design, wheels will be adjusted position automatically.
B. Top guide rail: special cylindrical design, the wheels could be moved up and down to adapt the possible deformation of the door.
5. Motor and Controllers
A. Siemens brand motor with clutch
B. Variable frequency drive system to realize slow start and stop.
6. Safety Photo Sensor and Alarm Light
7. Limit Switch
Photo sensor limit switch to control running limit, it is more reliable and durable.
