Garage 6m Aluminium Roller Shutter Doors manual electric 50dB Sound insulation 60HZ
| Place of Origin | China |
|---|---|
| Brand Name | YUOU |
| Certification | ISO9001 |
| Model Number | YUOU-aluminum roller up door -1 |
| Minimum Order Quantity | 1 set |
| Price | USD600-1500/set |
| Packaging Details | wooden box packing , carton packing |
| Delivery Time | 10-30days according to your order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000set/30days |
Product Details
| Product Name | Aluminum Roller Shutter Door | After-sales Serivce | Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other |
|---|---|---|---|
| Door Material | Aluminum Alloy | Guarantee Period | 1 Years |
| High Light | 6m Aluminium Roller Shutter Doors,60HZ Aluminium Roller Shutter Doors,50dB Electric Roller Garage Doors |
||
Product Description

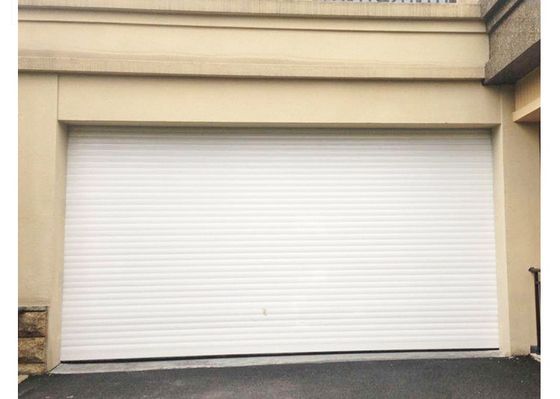

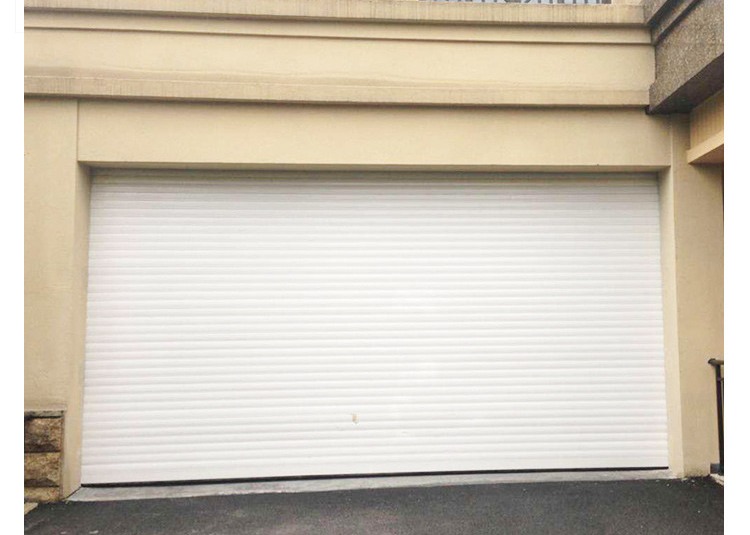

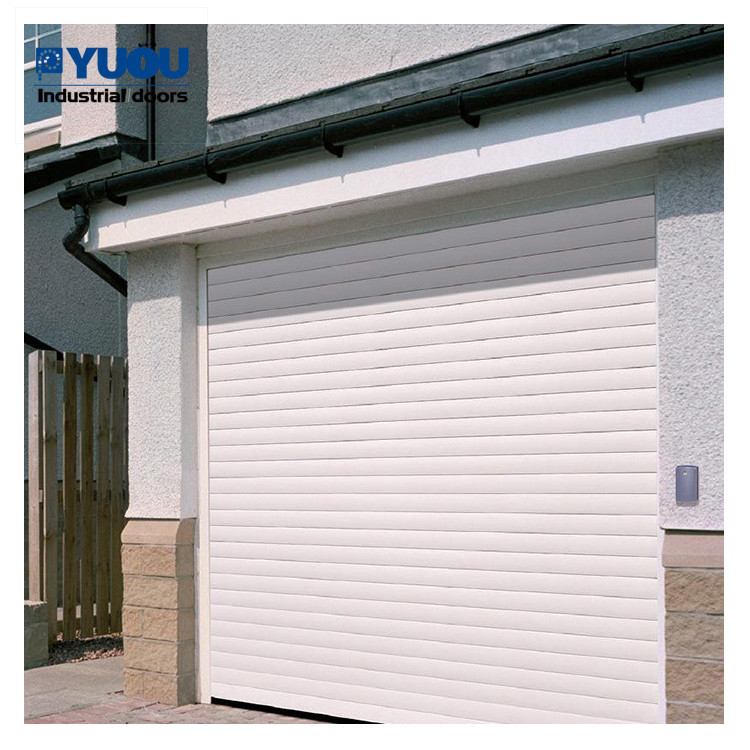

Good Quality Aluminum Roller Shutter Door Manual Electric Garage Door
The aluminum alloy rolling door is still raised to the top of the door hole, because of its double-layer aluminum alloy material, it looks more beautiful, high-grade, and good wind resistance and corrosion resistance. Widely installed in garages, warehouses, facades, workshops and other places.
Technical Data:
| Max dimension | W6m*H6m |
| Wind resistence | 10level-12level(24.5m/s-32.6m/s) |
| Opening and closing speed | 5-15m/min |
| Power supply | Single phase: 220±10%V,50/60HZ |
| Color | Standard :white,other color can also be customized |
| Installation method | Middle, exterior, interior |
| Sound insulation level | 50dB |
| R value | Thermal resistance coefficientR≥12.05 |
Door details:

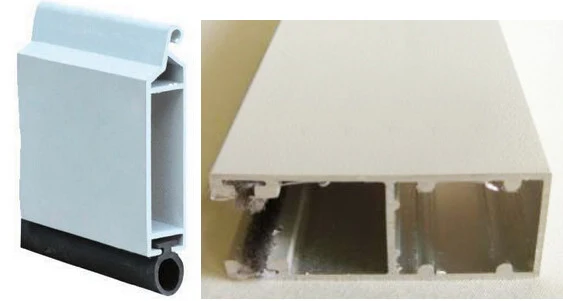

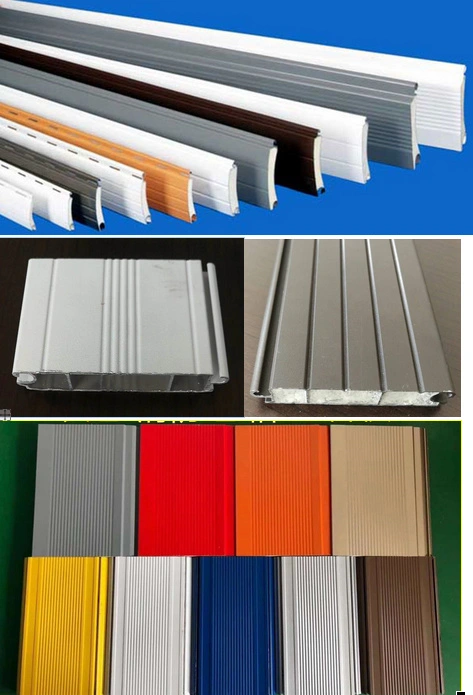

Slats:
double-layer aluminum alloy intermediate rib structure, high strength, inside fill with high density PU-FOAM,with better thermal insulation performance. Various color can be customized.
Track and bottom beam seal brush:
The track is a double-layer structure, which isolates the door body from running and the screw fixing space to prevent scraping. High-density tops are inserted on both sides to eliminate noise and enhance sealing.

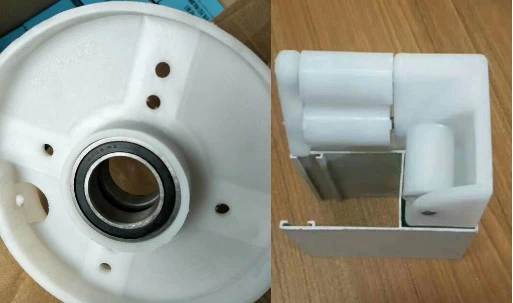

Bearing hub, reduce friction. Return wheel to prevent door panel ectopic.

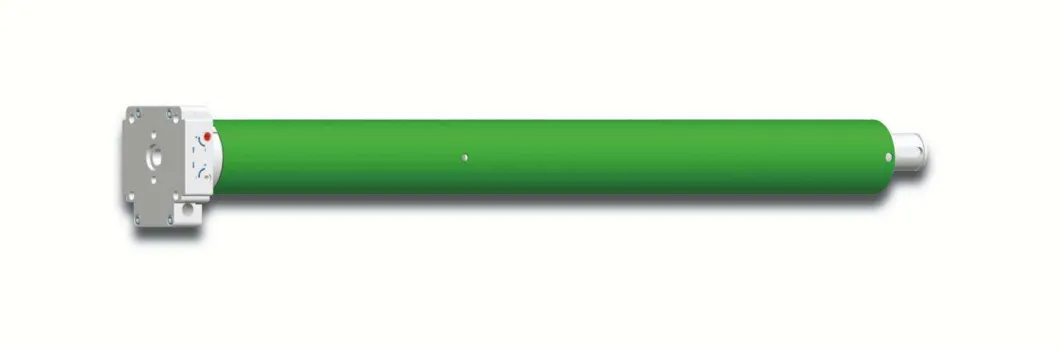

Tubular Motor

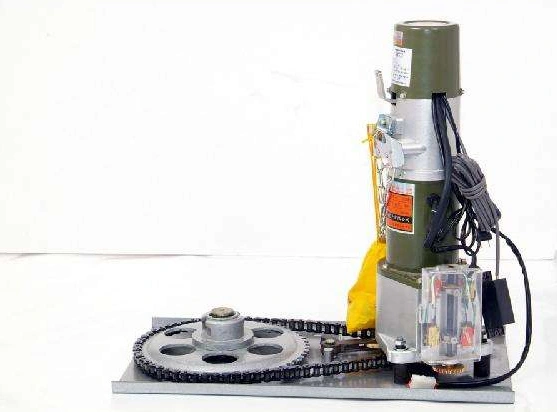

Side Motor
