Aluminum High Speed Rolling Up Door Rigid Insulated With Servo Motor
| Place of Origin | Henan, China |
|---|---|
| Brand Name | YUOU |
| Certification | ISO9001 |
| Model Number | Yuou-high speed-Spiral |
| Minimum Order Quantity | 1 piece |
| Price | $2000.00 - $3000.00/Piece |
| Packaging Details | Standard export wooden case |
| Delivery Time | 7-10 work days |
| Payment Terms | D/A, L/C, , T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Piece/Pieces per Month |
Product Details
| Product Name | Industrial Insulated Servo Motor Rigid Roller Shutter Transparent Window Aluminum Sheet High Speed Rolling Up Door | After-sale Service | Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other |
|---|---|---|---|
| Door Opening Size | Customized | Slat Material | Aluminum Alloy |
| Slat Thickness | 43mm | Opening Speed | 2.0m/s |
| Design Style | Modern | Power Supply | 220V, 50/60HZ |
| Function | Thermal Insulation | Position | Garage |
| Color | White, Blue. Yellow, Red | Opening Method | Rolling Pull |
| High Light | 43mm High Speed Rolling Up Door,Servo Motor Rolling Up Door,Rigid High Speed Roller Shutter Door |
||
Product Description
Industrial Insulated Servo Motor Rigid Roller Shutter Transparent Window Aluminum Sheet High Speed Rolling Up Door
Description
1. Product: High Speed Aluminum Spiral Door
2. Size: Customized
3. Certification: ISO9001, CECTI, ROHS
Technical Data
| Product name | High Speed Aluminum Spiral Door |
| Door material | Aluminum+PU foam insulation |
| Max. opening speed | 2.0m/s |
| Max. closing speed | 1.0m/s |
| Panel color | White RAL9010,White Aluminium RAL9006 |
| Thermal insulation of door panel | K≤1.5W/(m²·K) |
| Sound insulation factor | R=25dB |
| Wind resistance | Beaufort scale 12 (35m/s) |
| Used | Building industry, logistics |
Features:
(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.
High Speed Door Motor
Electric control box: The electric control box has a LED touch screen with on, off, and stop buttons, and an emergency stop switch. In case of emergency, the control loop power can be quickly cut off to protect people and machines.
Function of LED touch screen: displaying the fault code, easily modify the operating parameters and set the system password.
Limit: Absolute encoder
Output speed: 100R/Min
Function: adjustable speed, rebound resistance, Chinese and English menu, fast clutch, slow start and slow stop Output aperture: Dia.25.4mm
Operating temperature range: -20 to 45°C
A variety of interfaces: infrared, airbags, small door contact switches, warning lights, geomagnetic and so on.

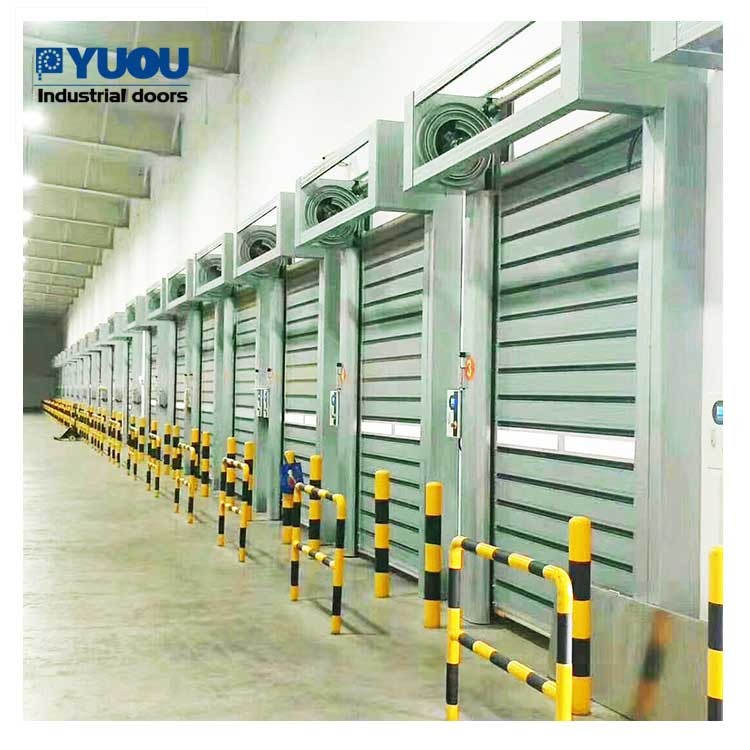

Product real photos
