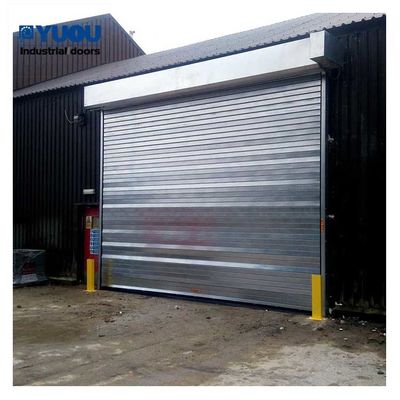

Blast Proof Steel Roller Shutter Door 380V Heavy Duty Roll Up Doors 12 Level Windproof

  • Blast Proof Steel Roller Shutter Door 380V Heavy Duty Roll Up Doors 12 Level Windproof
Place of Origin Henan, China
Brand Name YUOU
Certification ISO9001
Model Number Yuou-anti explosion roller shutter
Minimum Order Quantity 1 piece
Price $3000.00 - $5000.00/Piece
Packaging Details Standard export wooden case
Delivery Time 7-10 work days
Payment Terms D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Industrial Heavy Duty Automatic Blast Proof Roller Shutter Door For Military Base After-sale Service Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other
Max. Door Size Customized Door Material Heavy Duty Steel
Track Special Structure Control Box Explosion-proof Control System
Motor Explosion-proof Running Speed 0.2 M / Sec
Windproof ≥38 M / S Application Military Or Chemical Factory
Operating Temperature -25 ºC - 55 ºC Warranty 1 Year
Highlight

380V Steel Roller Shutter Door

,

12 Level Steel Roller Shutter Door

,

380V Heavy Duty Roll Up Doors
Leave a Message
Product Description

Industrial Heavy Duty Automatic Blast Proof Roller Shutter Door for Military Base

Application

Widely installed in explosion-proof partition areas, banks, chemical plants, chemical warehouses, ammunition warehouses, military bases and other places where high security requirements for anti-theft and explosion protection.

Technical Parameters:

Track desgin

The honeycomb steel is filled into the track

Explosion-proof motor

Explosion-proof three-phase asynchronous motor

Voltage: 380V / 50HZ

Power: 1.5kw (customized according to door size)

Explosion-proof grade: EEXedIIBT4

Speed: 1390r / min, low noise;

Explosion-proof control system

 can still safely control the door body, will not produce any static electricity and sparks.

Control mode

Smoke detector / temperature detector / remote control

Windproof

≥38 m / s, "12 level

Running Speed

0.2 m / sec

Operating temperature

-25 ºC - 55 ºC

Features:
1. All the steel structure of the doors are cut and formed from heavy-duty steel, in order to resist the explosive, bullet, blast, etc. Plus the special track structure, customized explosion-proof control system and honeycomb steel of inner track also make sure the door body safe.
2. These special customized raw material, design and production with high quality.

Blast Proof Steel Roller Shutter Door 380V Heavy Duty Roll Up Doors 12 Level Windproof 0Blast Proof Steel Roller Shutter Door 380V Heavy Duty Roll Up Doors 12 Level Windproof 1
