Industrial Sectional Overhead Door Thermal Insulation 75mm 100mm thickness
| Place of Origin | Henan, China |
|---|---|
| Brand Name | YUOU |
| Certification | ISO9001 |
| Model Number | Yuou-Sectional |
| Minimum Order Quantity | 1 piece |
| Price | $500.00 - $1000.00/Piece |
| Packaging Details | Standard export wooden case |
| Delivery Time | 7-10 work days |
| Payment Terms | D/A, L/C, , T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Piece/Pieces per Month |
Product Details
| Product Name | Industrial Thermal Insulation Sectional Overhead Garage Door For Loacking Dock | After-sale Service | Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other |
|---|---|---|---|
| Lifting Method | Standard, High, Vertical | Panel Thickness | 40mm/50mm/75mm/100mm |
| Panel Material | Steel Plate + PU Foam | Surface Finishing | Finished |
| Open Style | Electrical Or Manual | Color | White, Blue. Yellow, Red |
| Hardware | Industrial Class | Option | Window, Pedestrian Door |
| Application | Warehouse, Workshop | Service Life | 15 Years |
| High Light | 75mm Sectional Overhead Door,100mm Sectional Overhead Door,Insulation Industrial Sectional Doors |
||
Product Description

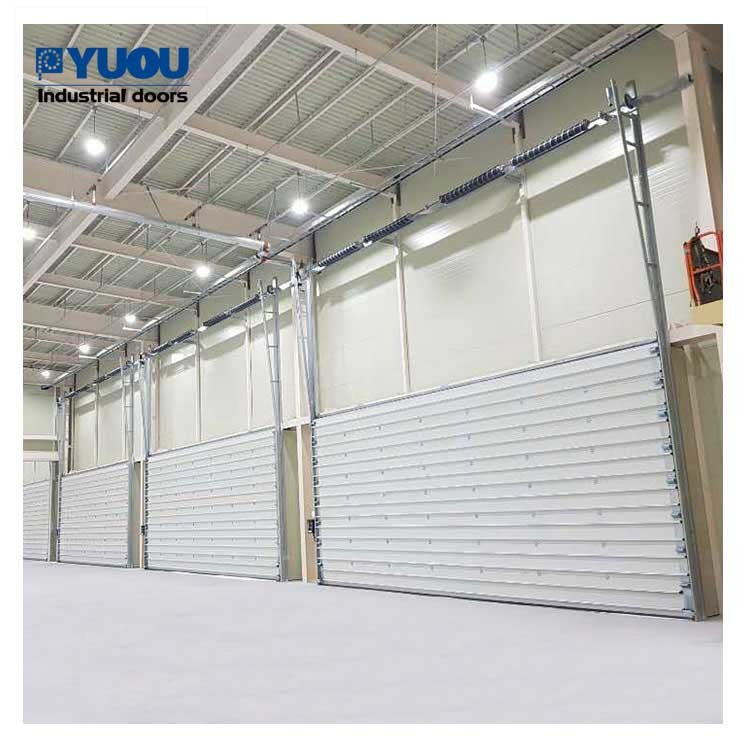

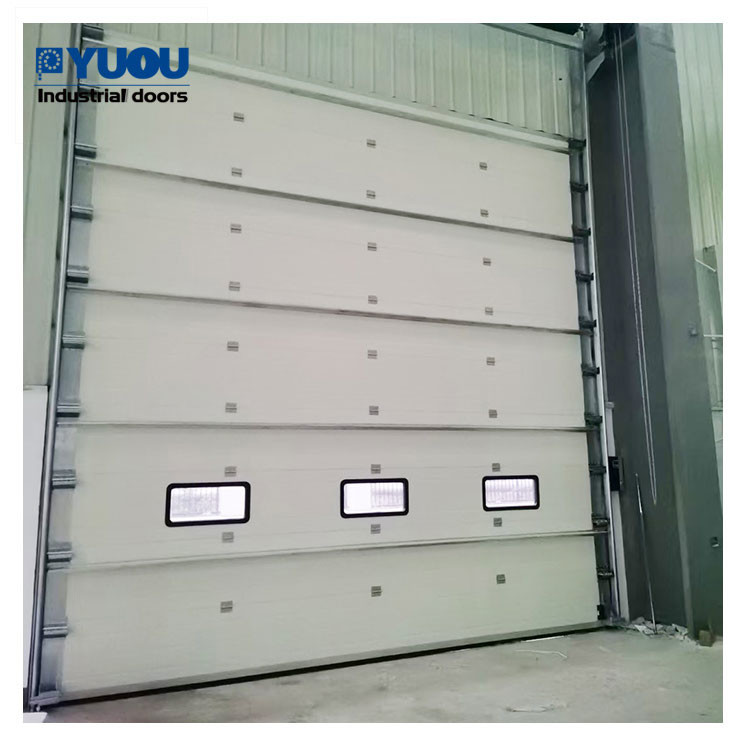

Industrial Thermal Insulation Sectional Overhead Garage Door For Loacking Dock
Technical Data
| Max. dimension | width * height 12000mm*8000mm |
| Opening and closing speed | 20-40cm/s |
| Panel material | steel plate + PU foam |
| Lifting method | Standard lifting, high lifting, vertical lifting |
| Wind resistance | 28-35m/s (Class 10-12) |
| Operation method | Control box, remote control |
| Trade | Galvanized steel |
| Emergency operation | Manual hoist chain if power failure |
| Trademark | Yuou |
1. Panel material construction
Steel-PU foam-steel, sandwich panel, double layer 0.4mm steel plate, total thickness 40mm standard
2. Section style
Finger-protection or non finger protection style are optional
3. Good seals
Sealing stripe built in around so can prvent wind, sand, rainwater to avoid accorosion
4. Accident-dropping safety device
Equipped with dropping avoiding steel cord at the bottom, to secure the accident dropping within 5cm
5. Track
Single track design: suitable for headroom distance ≧350mm
Double track design: suitable for lower headroom ≧200mm
6. Spring broken safety device
7. Spring axis
Industrial class 25.4mm steel bar
Description
Industrial Overhead Sectional Door is slide-running design. Door panels are connected end to end through C-type rails. Whole door body can bend flexibly and slide along guide rails with different bending shapes. It can be fit onto various kinds of door holes. Thus, it is very widely used in all kinds of factories, logistics warehouse, and garages.
